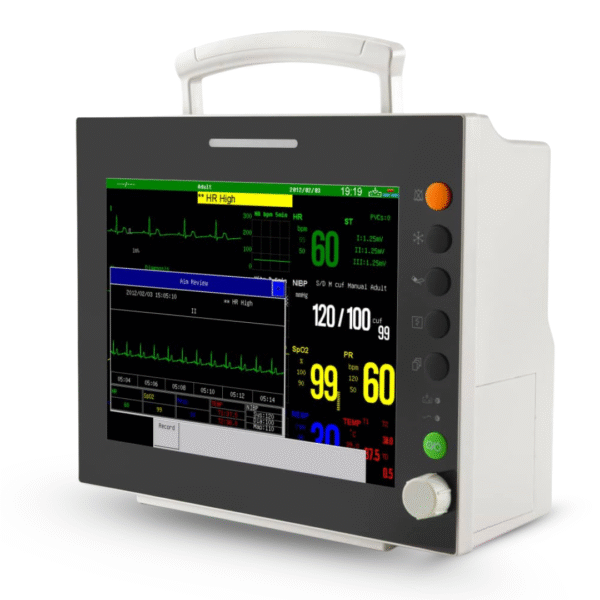

Multi-Parameter Cardiac Patient Monitor HD 9000

Features :

1. 12.1″ color TFT display, high resolution: 800×600dpi;

2. Separated para module: ECG, NIBP, Sp02 module;

3. Real time S-T segment analysis, and ARR analysis;

4. SpO2 Pitch Tone Variation and Drug Dose Calculation;

5. Parameter waveform and characters color selectable

6. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic 7-lead ECG waveforms

7. Standby mode for Energy saving and suspend monitoring;

8. Capture dynamic waveforms;

9. Internal storage: 3600s full-disclosure waveform review;

10. External storage: SD card slot enables memory extension; 11. Built-in rechargeable lithium battery, and battery volume checking,

12. VGA Output; AC power checking

13. Efficient resistance to interference of defibrillator and HF knife;

14. High accuracy SpO2 &NIBP, workable for neonate;

15. Networking capacity and TCP/IP networking platform enable abundant future upgrade.

16. Time delay switch-off function keep the monitor data restart monitor;

17. Complete and flexible mounting solution for transportation and in-patient monitoring.

Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP records and 200 alarm event;
Battery: Built-in 2 hours rechargeable lithium battery, and battery volume   display. 4 hours rechargeable lithium battery (optional);
Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).
Advance patient Manage: gender, full name, ID no., room no., bed no.,  weight,height, blood type, paced or not, remakes;
Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;
Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional);
Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
Standby: Unique standby mode for energy saving and suspend monitoring;
Time delay: Time delay switch-off function to save data when monitor turn off suddenly;
Easy software update: Users can update monitor software by themselves;
Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;
Storage: external SD card slot enables memory extension(optional);
Data transfer: USB port to allow to transfer patient data to a PC (optional);
Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);
Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;
